Extralink Betty | Fiber optic distribution box | 4 core

4.05  (30.51 kn) PDV uključen

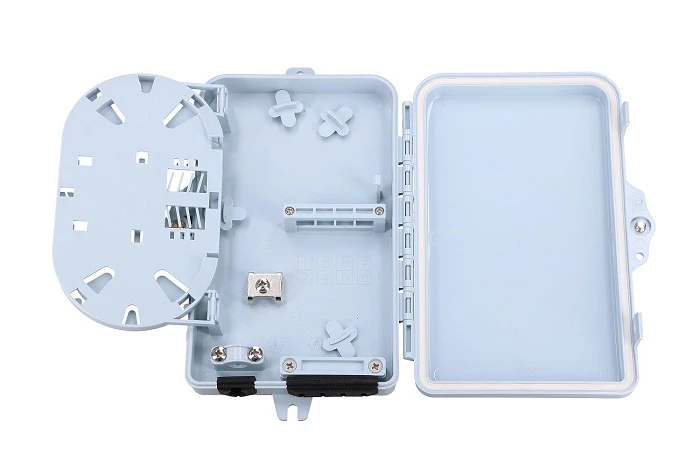

EXTRALINK BETTY 4 CORE – fiber optic box

EXTRALINK BETTY 4 CORE serves as an end point of the power cable that connects to the drop cable in the FTTx communication network system. The fiber optic box can be used for fiber linking, splitting and distribution. It also provides solid protection and gives the possibility to manage the FTTx network building.

Extralink betty 4 core fiber optic box

Features:

Features:

  • Fully enclosed structure
  • Material: PC+ABS, waterproof, dustproof, ageing resistant, IP65
  • Power cable mounting and drop cable. Fibre bonding, fastening, storage and distribution in one
  • Cables, pigtails, crossover cables run on their own path
  • Installation of the SC-type adapter
  • Easy maintenance
  • The control panel can be inverted and the power cable is articulated

4 core fibre-optic box

Technical data on lightning resistance

The earthing device is insulated together with the housing. The insulation resistance is not less than 2 104 M/500 V (DC); IR2 104 M/500 V. The static voltage between the earthing device and the housing is not less than 3000 V(DC)/min, without any puncture: U3000 V.

how to choose fiber optic boxwhat can of light water to choose

SKU5902560360790Housing materialPolycarbonate (PC)International Protection (IP) codeIP65Mast mountableNoNumber of fibres supported (max)4Number of splice trays supported (max)1Product colourGreySuitable for indoor useYesSuitable for outdoor useNoWall mountableYes
Status200 na zalihi
Categories
Housing materialPolycarbonate (PC)
International Protection (IP) codeIP65
Mast mountableNo
Number of fibres supported (max)4
Number of splice trays supported (max)1
Product colourGrey
Suitable for indoor useYes
Suitable for outdoor useNo
Wall mountableYes
