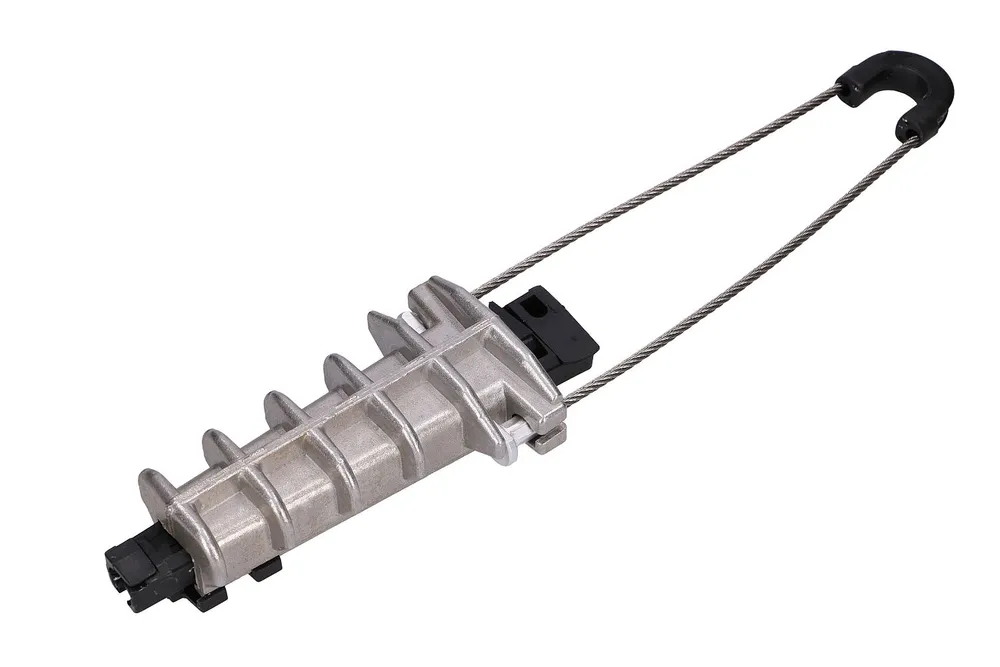

Extralink I-1500-1.PAT extraction clamp for 8-12mm cables

TheI-1500-1.PAT strain relief bracket is designed for suspending round self-supporting cables(8-12 mm in diameter). The purpose of the lashing clamps is to tension the ADSS cables between the spans. The lashings make it possible to terminate the line and tighten it. Thanks to the removable rope, the holder can be used on any type of bracket.
A complete holder consists of the following parts

• Wire made of stainless steel with mushroom type element for installation in holder
• Body made of aluminium alloy for resistance to severe weather conditions
• Locking wedges made of thermoplastic material

Features/Application:

Features/Application:

• Body: lightweight aluminum alloy with high mechanical and weather resistance, UV resistant
• Wedge: thermoplastic material of high quality and resistance to mechanical and weather conditions, UV-resistant
• Handle string: stainless steel
• Minimum breaking force: 15kN
• Wide range of cable dimensions from 8 to 12mm
• Tool-less mounting for quick and efficient installation
• Universal installation using a bracket mounted on the column substructure
