Extralink LC/APC-LC/APC | Patchcord | Single Mode, Duplex, 9/125um, G657A, 10m

3.74 € (28.18 kn) PDV uključen

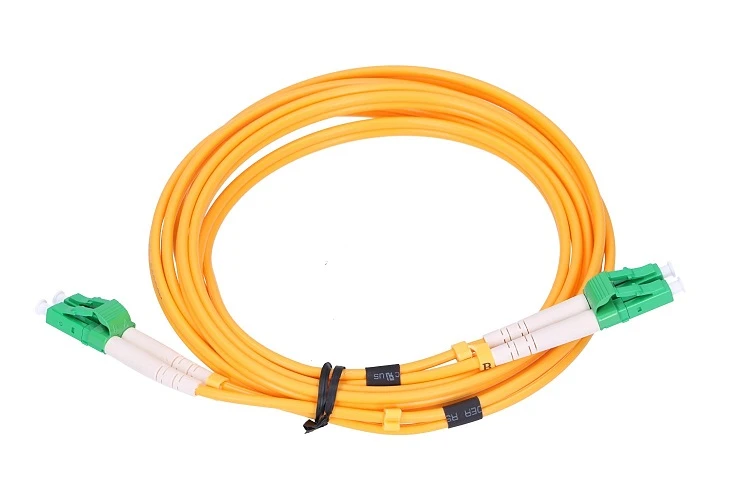

Patchcord LC/APC-LC/APC SM 9/125 DUPLEX 3.0MM 10M

Patchcord (the connection cable) single-mode with a length of 10 meters, a cable diameter of 3 mm, terminated with LC/APC-LC/APC connectors, is used for networking optical equipment such as switches or converters. Patchcords are also widely used in FTTH networks to connect OLT and ONU/ONT type devices.

EXTRALINK Patchcord

Patchcord features

Patchcord features

  • Low attenuation
  • Operation over a wide temperature range
  • Repeatability of measurements
  • Repeatability of parameters

Purpose

Purpose

  • FTTH networks
  • LAN, WAN
  • WDM systems
SKU5902560361339Cable categorySingle-ModeFiber standardG.657.A1Length10mTypes of connectorsLC/APC-LC/APCCable diameter3,0mmCable diameter3Cable length10Cable typeFTTHCladding diameter125Connector 1LC/APCConnector 1 genderMaleConnector 2LC/APCConnector 2 genderMaleConnector materialCeramicConnector polish typeAPCCore diameter9Fiber mode structureSingle-modeFiber optic patchcord typeDuplexFibre optic typeG.657.A1Jacket materialPolyvinyl chloride (PVC)Plug and PlayYesProduct colourYellowQuantity per pack1
StatusNema na zalihi
Categories
FacebookPinterestRedditDeliciousWhatsappEmail
Cable categorySingle-Mode
Fiber standardG.657.A1
Length10m
Types of connectorsLC/APC-LC/APC
Cable diameter3,0mm
Cable diameter3
Cable length10
Cable typeFTTH
Cladding diameter125
Connector 1LC/APC
Connector 1 genderMale
Connector 2LC/APC
Connector 2 genderMale
Connector materialCeramic
Connector polish typeAPC
Core diameter9
Fiber mode structureSingle-mode
Fiber optic patchcord typeDuplex
Fibre optic typeG.657.A1
Jacket materialPolyvinyl chloride (PVC)
Plug and PlayYes
Product colourYellow
Quantity per pack1
