Cable category | Single-Mode |
Fiber standard | G.657.A1 |
Length | 10m |
Types of connectors | SC/APC-LC/APC |
Cable diameter | 3,0mm |
Cable diameter | 3 |
Cable length | 10 |
Cable type | FTTH |
Connector 1 | SC/APC |
Connector 1 gender | Male |
Connector 2 | LC/APC |
Connector 2 gender | Male |
Connector material | Ceramic |
Fiber mode structure | Single-mode |
Fibre optic type | G.652D |
Full duplex | Yes |
Jacket material | Nylon/Polyvinyl Chloride (PVC) |
Plug and Play | Yes |
Product colour | Yellow |

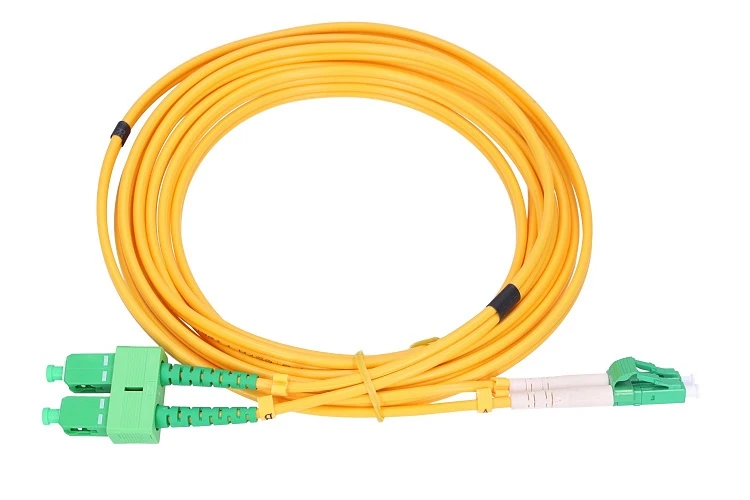

Extralink SC/APC-LC/APC | Patchcord | Single Mode, Duplex, 9/125um, 3mm, 10m
2.95 € (22.23 kn) PDV uključen
Patchcord SC/APC-LC/APC SM 9/125 DUPLEX 3.0MM 10M
Patchcord (the connection cable) single-mode with a length of 10 meters, a cable diameter of 3 mm, terminated with SC/APC-LC/APC connectors, is used for the network connection of optical equipment such as switches or converters. Patchcords are also widely used in FTTH networks to connect OLT and ONU/ONT type devices.
Patchcord features
Patchcord features
- Low attenuation
- Operation over a wide temperature range
- Repeatability of measurements
- Repeatability of parameters
Purpose
Purpose
- FTTH networks
- LAN, WAN
- WDM systems
