Fiber optic cable 16F | Easy access ITU-T G.657A2, 500m | Extralink

165.31 € (1,245.53 kn) PDV uključen

Easy access cable 16F G.657A2 500M Extralink

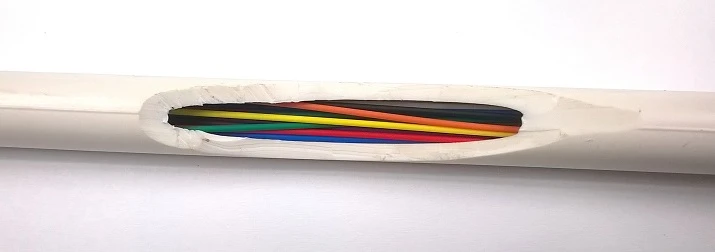

Extralink easy access cable is a one-mode fiber optic cable designed for indoor installation. The construction and placement in a loose tube enable fast and easy access to the optical fibers. The cable is made of 16 fibers of G.657A.2 standard, and its diameter is 10.5 mm. The price is calculated for 1 meter of the cable.

FIBER OPTIC EASY ACCESS CABLE 16C ITU.G.657A2 500M

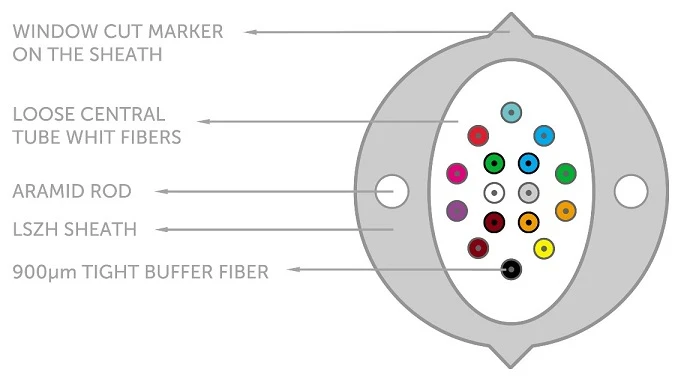

Cable structure

Cable structure

  • Marker to cut out a hole in the cover
  • Loose, central tube with fibers
  • Aramid bar
  • Shielding LSZH
  • 900 µm of sealed fibre lacquer coating

FIBER OPTIC EASY ACCESS CABLE 16C ITU.G.657A2 500M

SKU5902560360899Fiber standardG.657.A2Number of fibers16FCable diameter10,5mmCable diameter1.05Cable length500Cable typeFTTHCertificationCE, RoHsConnector 1NoConnector 1 genderNoConnector 2NoConnector 2 genderNoFibre optic typeG.657.A2Jacket materialLow smoke zero halogen (LSZH)Operating temperature (T-T)-20 - 70Package typeBoxPlug and PlayNoProduct colourWhiteQuantity per pack1Storage temperature (T-T)-30 - 70Test protocol includedYesWavelengths supported1310,1550
StatusNema na zalihi
Categories
FacebookPinterestRedditDeliciousWhatsappEmail
Fiber standardG.657.A2
Number of fibers16F
Cable diameter10,5mm
Cable diameter1.05
Cable length500
Cable typeFTTH
CertificationCE, RoHs
Connector 1No
Connector 1 genderNo
Connector 2No
Connector 2 genderNo
Fibre optic typeG.657.A2
Jacket materialLow smoke zero halogen (LSZH)
Operating temperature (T-T)-20 – 70
Package typeBox
Plug and PlayNo
Product colourWhite
Quantity per pack1
Storage temperature (T-T)-30 – 70
Test protocol includedYes
Wavelengths supported1310,1550
