Extralink easy access fibre optic cable 24F G.657A2 500M

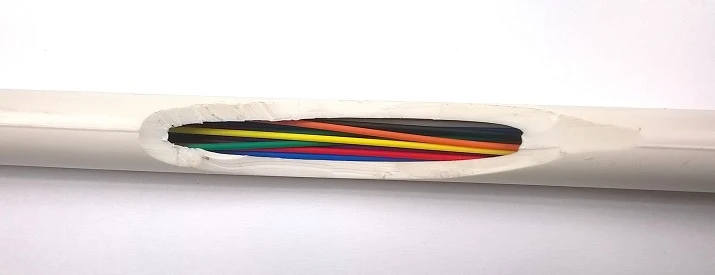

Extralink easy access cable is a one-mode fiber optic cable designed to be installent indoors. The construction and placement in a loose tube enable fast and easy access to the optical fibers. The presented cable is made of 24 fibres of G.657A.2 standard and its diameter is 10.5 mm. The given price is calculated for 1 meter of cable.

FIBER OPTIC EASY ACCESS CABLE 24C ITU.G.657A2 500M

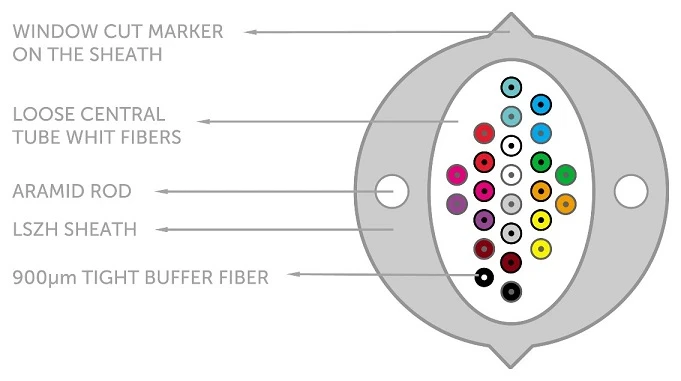

Cable structure

Cable structure

  • Marker to cut out a hole in the cover
  • Loose, central tube with fibers
  • Aramid wire
  • Shielding LSZH
  • 900 µm of sealed fibre lacquer coating

FIBER OPTIC EASY ACCESS CABLE 24C ITU.G.657A2 500M

SKU5902560360905Fiber standardG.657.A2Number of fibers24FCable diameter10,5mmCable diameter1.05Cable length500Cable typeFTTHConnector 1NoConnector 1 genderNoConnector 2NoConnector 2 genderNoFibre optic typeG.657.A2Jacket materialLow smoke zero halogen (LSZH)Operating temperature (T-T)-20 - 70Product colourWhiteStorage temperature (T-T)-30 - 70Wavelengths supported1310,1550
StatusNema na zalihi
Categories
FacebookPinterestRedditDeliciousWhatsappEmail
Fiber standardG.657.A2
Number of fibers24F
Cable diameter10,5mm
Cable diameter1.05
Cable length500
Cable typeFTTH
Connector 1No
Connector 1 genderNo
Connector 2No
Connector 2 genderNo
Fibre optic typeG.657.A2
Jacket materialLow smoke zero halogen (LSZH)
Operating temperature (T-T)-20 – 70
Product colourWhite
Storage temperature (T-T)-30 – 70
Wavelengths supported1310,1550
