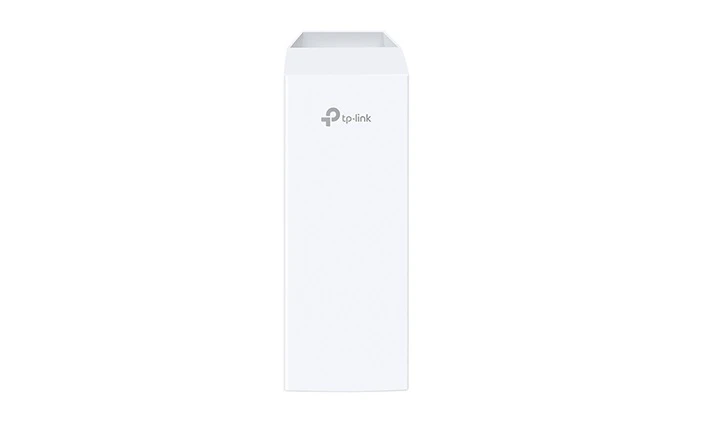

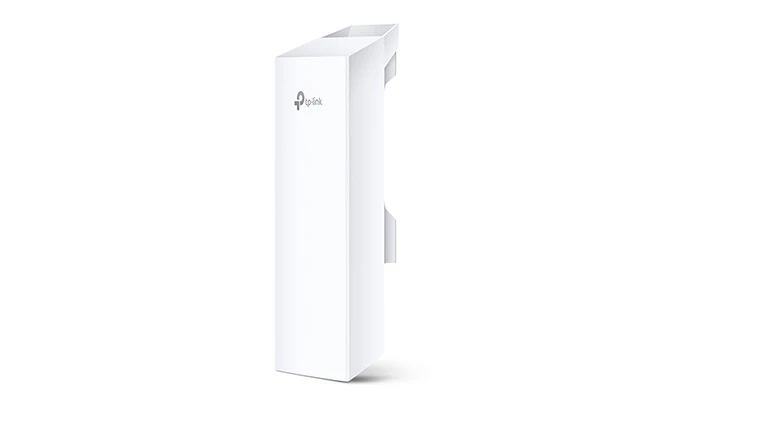

TP-Link CPE510 | Access point | MIMO, N300, 2x RJ45 100Mb/s, 13dBi

52.00 € (391.79 kn) PDV uključen

Multifunctional external device

TP-Link CPE510 is a multifunctional external device that can work as an access point, Client, bridge, repeater, AP router and WISP. It is equipped with a MIMO 2×2 directional antenna with 13 dBi power and a central Pharos Control management system. The system is optimized for long-distance transmission.
A Passive PoE adapter is included, allowing the device to be powered over a maximum distance of 60 meters.

access point tplink wireless router

Wide range of applications

CPE 5 GHz 300 Mb/s provides effective solutions for external wireless networks. Thanks to the central management system it is ideal for point-to-point and point-to-multipoint Wi-Fi connections. Professional performance combined with ease of use makes CPE510 a great choice for both business customers and individual users.

Business equipment

Quality and durability

Thanks to Qualcomm Atheros chipsets, high gain antennas, high quality materials, specially designed housing and PoE power supply, the presented CPE510 can operate in virtually any conditions, within the temperature range from -40°C (-40°F) to +70°C (158°F).

Wireless transmission over 15 km

Specially designed for outdoor applications CPE510 allows wireless transmission over a distance of more than 15 km.

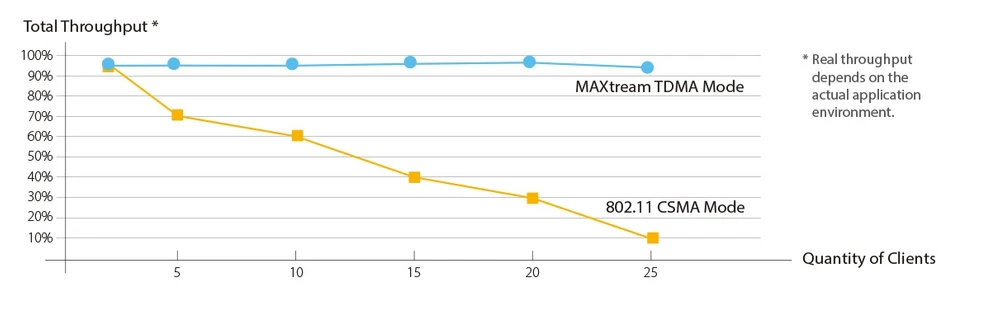

TP-LINK MAXtream TDMA technology

To prevent lowering network bandwidth and collisions between other transmitters, the CPE510 uses TP-LINK MAXtream TDMA technology.

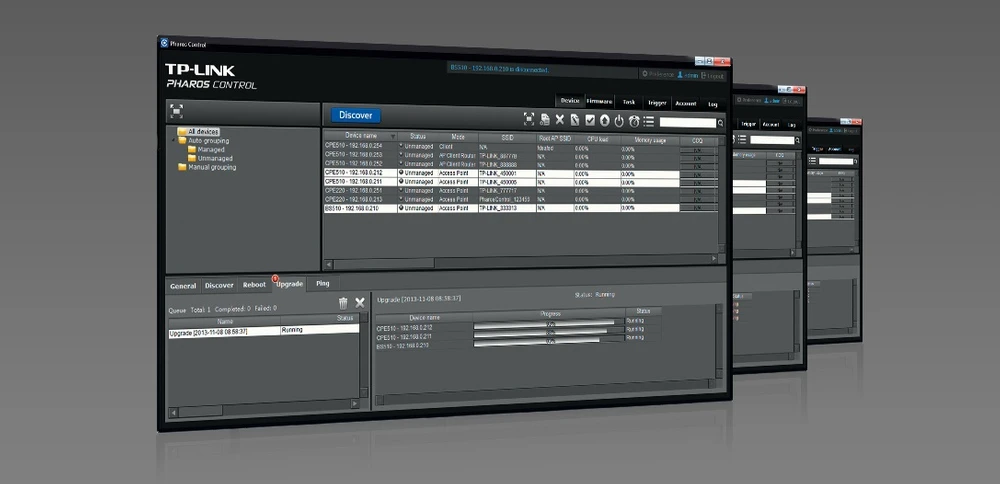

Pharos Control – central management system

Pharos Control is software that allows you to manage all CPE510 access points in your network from a single computer. With Pharos Control, numerous functions such as device detection, status monitor, software updates and network management can be used remotely.

SKU6935364070922Operating frequency5 GHz2.4 GHzYes5 GHzNoAC input frequency50/60AC input voltage100 - 240Antenna direction typeOmni-directionalAntenna featuresIntegrated antennaAntenna gain11dBi - 20dBiAntenna gain level (max)13Antenna typeInternalAntennas quantity1Automatic channel scanningYesAutomatic channel selectionYesBandwidth5Built-in processorYesCables includedACCabling technology10/100Base-T(X)Certification- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHSCompatible operating systemsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.Depth79Device typeClient deviceEthernet LAN (RJ-45) ports1Ethernet LAN data rates10,100Flash memory8Frequency band5.15 - 5.85Height60.3Housing materialPlasticInput current0.8Internal memory64International Protection (IP) codeIP5XIP address filteringYesLED indicatorsYesMAC address filteringYesManagement platformPharos ControlManagement protocolsTDMAMaximum data transfer rate300Maximum outdoor range15000Networking standardsIEEE 802.11a,IEEE 802.11nOperating relative humidity (H-H)10 - 90Operating temperature (T-T)-30 - 70Package depth132Package height106Package weight720Package width270PlacementPolePower consumption (typical)13Power over Ethernet (PoE)YesProcessor architectureMIPS 74KcProcessor frequency560Processor modelQualcomm AtherosProduct colourWhiteReceiver sensitivity802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MReset buttonYesSecurity algorithms128-bit WEP,152-bit WEP,64-bit WEP,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSKStorage relative humidity (H-H)5 - 95Storage temperature (T-T)-40 - 70Throughput data rate300WAN connectionEthernet (RJ-45)Web-based managementYesWidth224.4
StatusNema na zalihi
Categories
FacebookPinterestRedditDeliciousWhatsappEmail
Operating frequency5 GHz
2.4 GHzYes
5 GHzNo
AC input frequency50/60
AC input voltage100 – 240
Antenna direction typeOmni-directional
Antenna featuresIntegrated antenna
Antenna gain11dBi – 20dBi
Antenna gain level (max)13
Antenna typeInternal
Antennas quantity1
Automatic channel scanningYes
Automatic channel selectionYes
Bandwidth5
Built-in processorYes
Cables includedAC
Cabling technology10/100Base-T(X)
Certification– FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
– RoHS
Compatible operating systemsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Depth79
Device typeClient device
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100
Flash memory8
Frequency band5.15 – 5.85
Height60.3
Housing materialPlastic
Input current0.8
Internal memory64
International Protection (IP) codeIP5X
IP address filteringYes
LED indicatorsYes
MAC address filteringYes
Management platformPharos Control
Management protocolsTDMA
Maximum data transfer rate300
Maximum outdoor range15000
Networking standardsIEEE 802.11a,IEEE 802.11n
Operating relative humidity (H-H)10 – 90
Operating temperature (T-T)-30 – 70
Package depth132
Package height106
Package weight720
Package width270
PlacementPole
Power consumption (typical)13
Power over Ethernet (PoE)Yes
Processor architectureMIPS 74Kc
Processor frequency560
Processor modelQualcomm Atheros
Product colourWhite
Receiver sensitivity802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm

802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, M

Reset buttonYes
Security algorithms128-bit WEP,152-bit WEP,64-bit WEP,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK
Storage relative humidity (H-H)5 – 95
Storage temperature (T-T)-40 – 70
Throughput data rate300
WAN connectionEthernet (RJ-45)
Web-based managementYes
Width224.4
