TP-Link MC210CS | Media converter | 1x SC/UPC, 1x RJ45 1000Mb/s, 1310nm, Single mode

32.09 € (241.78 kn) PDV uključen

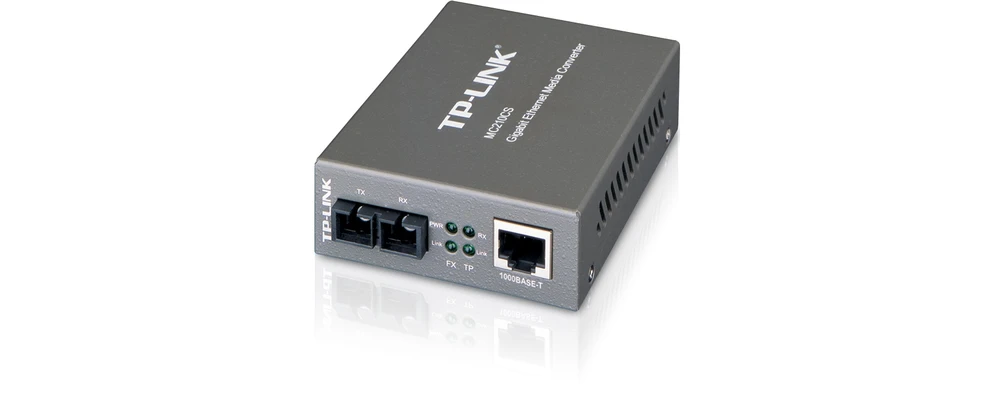

TP-Link MC210CS Gigabit Ethernet media converter

Media Converter MC210CS allows bi-directional conversion of 1000BASE-LX optical signal to a signal conducted with 1000Base-T copper cable. Designed according to IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards. The MC210CS converter is designed for use with a single-mode fiber optic cable using a SC type connector. It supports the specification of Long-term laser (LX) at full transmission speed during wired data transmission. The device operates at a wavelength of 1310 nm, both for transmitting and receiving data.

tp-link mc210cs gigabit fiber optic converter media seingle-mode single-mode converter

Free-standing converter with LED indicators

The MC210CS can work as a free-standing device or be mounted in a 19′ TP-LINK cabinet.
Port TX has automatic crossover function (Auto MDI/MDI-X). On the front panel there are LED indicators informing about the status of the device. The MC210CS, using multi-mode optical fiber, transmits an optical signal over a distance of 15 km.

Reliable Gigabit media converter TP-Link MC210CM

Reliable Gigabit media converter TP-Link MC210CM

  • Compliant with IEEE 802.3ab and IEEE 802.3z standards
  • Increases the range of fiber optic transmission to 15 km
  • RJ45 port 10/100/1000M (Auto MDI/MDIX)
SKU6935364030445Data transmission speedGigabit EthernetTransmission distance4-20kmType of fiber optic connectorSCAuto MDI/MDI-XYesCertificationFCC, CEConnectivity technologyWiredDepth73Ethernet interface typeGigabit EthernetEthernet LAN (RJ-45) ports1Ethernet LAN data rates1000Fiber mode structureSingle-modeFiber optic connectorSCFiber ports quantity1Full duplexYesHeight27InternalNoLED indicatorsPowerMaximum data transfer rate1000Maximum transfer distance15000Networking standardsIEEE 802.1ab,IEEE 802.3x,IEEE 802.3zOperating relative humidity (H-H)10 - 90Operating temperature (T-T)0 - 40Package depth165Package height65Package width204Power consumption (max)5.5Product colourBlackStorage relative humidity (H-H)5 - 90Storage temperature (T-T)-40 - 70Sustainability certificatesRoHSWavelength1310Width94.5
StatusNema na zalihi
Categories
FacebookPinterestRedditDeliciousWhatsappEmail
Data transmission speedGigabit Ethernet
Transmission distance4-20km
Type of fiber optic connectorSC
Auto MDI/MDI-XYes
CertificationFCC, CE
Connectivity technologyWired
Depth73
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates1000
Fiber mode structureSingle-mode
Fiber optic connectorSC
Fiber ports quantity1
Full duplexYes
Height27
InternalNo
LED indicatorsPower
Maximum data transfer rate1000
Maximum transfer distance15000
Networking standardsIEEE 802.1ab,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)10 – 90
Operating temperature (T-T)0 – 40
Package depth165
Package height65
Package width204
Power consumption (max)5.5
Product colourBlack
Storage relative humidity (H-H)5 – 90
Storage temperature (T-T)-40 – 70
Sustainability certificatesRoHS
Wavelength1310
Width94.5
