Wireless network standards | IEEE 802.11n |
Wireless network standards | IEEE 802.11g |
Wireless network standards | IEEE 802.11b |
Antenna gain level (max) | 3 |
Antenna type | External |
Antennas quantity | 2 |
Bandwidth | 2.4 |
DC-in jack | Yes |
Depth | 138.2 |
Dimensions (WxDxH) | 174 x 111 x 30 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100 |
Ethernet LAN interface type | Fast Ethernet |
Ethernet WAN | Yes |
Height | 40.3 |
Interface | USB 2.0 |
Modulation | 16-QAM,64-QAM,CCK,DBPSK,DQPSK,OFDM |
Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3u |
Operating relative humidity (H-H) | 10 – 90 |
Operating temperature (T-T) | 0 – 40 |
Package depth | 240 |
Package height | 70 |
Package weight | 660 |
Package width | 315 |
Power requirements | 9VDC / 0.85A |
Product colour | Black, White |
Receiver sensitivity | 270M: -68dBm@10% PER, 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER |
Storage relative humidity (H-H) | 5 – 95 |
Storage temperature (T-T) | -40 – 70 |
Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
Transmit power | 20 |
USB 2.0 ports quantity | 1 |
USB port | Yes |
USB ports quantity | 1 |
Wi-Fi band | Single-band (2.4 GHz) |
Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
Width | 203.8 |
xDSL connection | No |
TP-Link TL-MR3420 | WiFi Router | 3G/4G, N300, 5x RJ45 100Mb/s, 1x USB
31.31 € (235.91 kn) PDV uključen

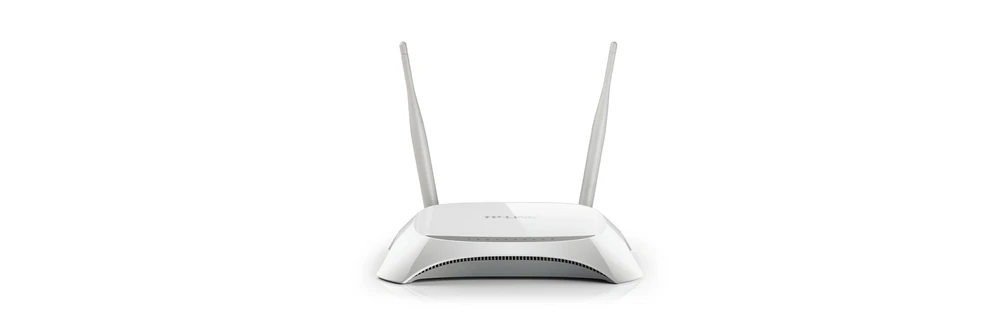

TP-Link MR 3420 – 3G and 4G N standard wireless router
TP-Link MR 3420 is a wireless router working in N standard. The device enables sharing the Internet by several users at the same time, all you have to do is connect a 3G/4G USB modem to it.
Share your 3G/4G connection
The MR3420 Wireless Router gives you the ability to share your 4G network, it also supports older 3G modems, so users are able to share their broadband network. The device complies with IEEE 802.11n standard and, unlike IEEE 802.11g, is capable of sending Wi-Fi signal over longer distances. The TL-MR3420 provides connections of up to 300 Mbps, up to 32 Internet devices at the same time. The router is compatible with your smartphone, laptop, console etc.
Compatibility with all modems on the market
TP-Link realizes that compatibility is the most important feature of mobile routers, so it makes every effort to make its routers compatible with all modems available on the market.
Quick and easy configuration

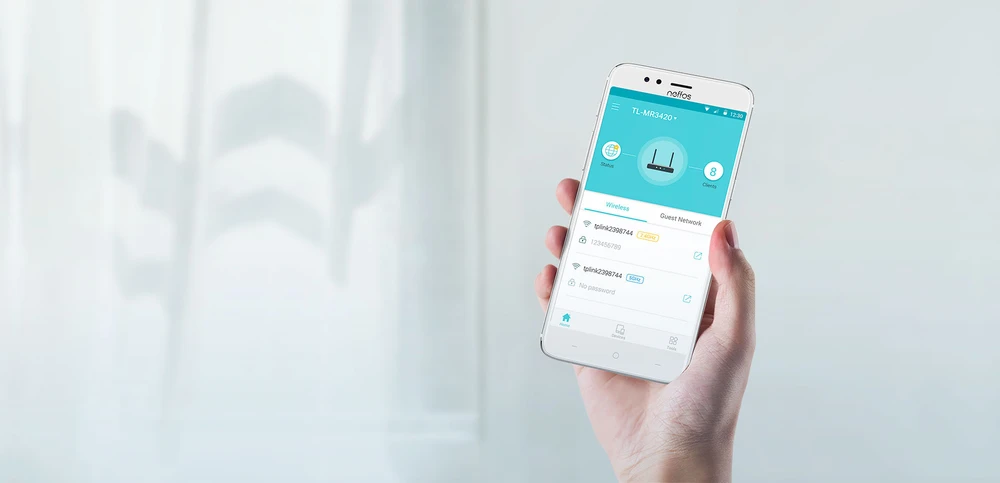

Thanks to the Tether application, available on iOS and Android, you will configure the TL-MR3420 in a few moments. The application is fully intuitive and every user can handle it. Security features such as parental control and access control will be available through your smartphone, from any place you happen to be.
Features TL-MR3420:
Features TL-MR3420:
- Compatible with USB LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO modems
- Use of a backup link (3G/4G and WAN) providing a permanent connection to the Internet
- Local wireless HD video sharing at speeds up to 300 Mbps
- WPS button for quick establishment of a secure wireless connection
- Link bandwidth control enabling administrators to set data transmission speed limits for individual workstations
