TP-Link TL-SM321A | SFP Module | 1,25Gb/s, LC/UPC, 10km, 1550/1310nm, Single mode

22.01 € (165.83 kn) PDV uključen

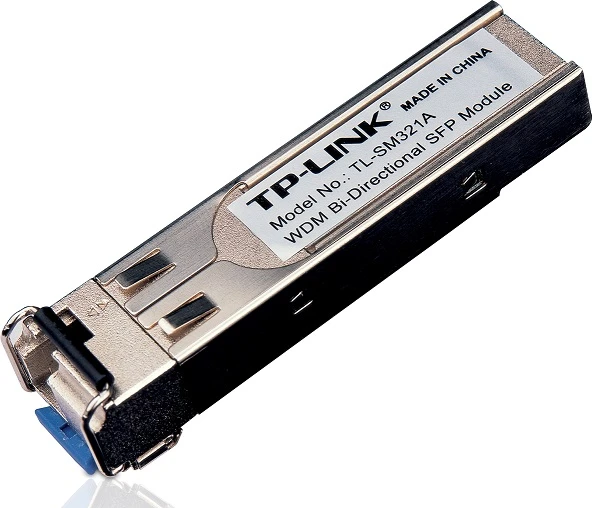

Two-way SFP module TL-SM321A 1000BASE-BX WDM

TP-LINK’s TL-SM321A is a single-mode SFP module using the latest 1000 Base-BX standard, which performs bidirectional transmission on a single fiber. The SFP optical insert operates at 1550 nm and 1310 nm wavelengths. Single-mode SFP module TL-SM321A enables transmission over a distance up to 10 km and the speed of this transmission reaches up to 1.25 Gbps. SFP TL-SM321A inserts are equipped with LC/UPC connectors and work with many TP-LINK devices such as routers, switches and media converters.

SFP module TL-SM321A 1000BASE-BX WDM BI-DIRECTIONAL

Special features

Special features

  • Support for bidirectional WDM technology using a single fiber optic fibre
  • TX: 1550 nm/RX: 1310 nm
  • Internal power supply +3.3 V
  • In pairs with TL-SM321B
  • Plug-and-Play
  • Compatible products: TL-SG5428, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC200L
SKU6935364030513Output connectorLCSFP module - port speed1,25 GbpsTransmission distance4-20kmCertificationFCC, CEDepth12.9Fiber cable diameters supported (core/cladding)9/125Fiber optic connectorLC (UPC)Fiber typeSM (Single-Mode)Height12.9Input voltage3.3Interface typeSFPMaximum data transfer rate1250Maximum transfer distance10000Networking standardsIEEE 802.3zNumbers of pieces in the package1-packOperating relative humidity (H-H)10 - 90Operating temperature (T-T)0 - 70Package depth81.5Package height38.5Package weight60Package width122.5Plug and PlayYesRx wavelength (max)1310SFP transceiver typeFiber opticSingle-mode fiber (SMF) supportedYesStorage relative humidity (H-H)5 - 90Storage temperature (T-T)-40 - 80Tx wavelength (max)1550Wavelength1310/1550 nmWidth55.4
StatusNema na zalihi
Categories
FacebookPinterestRedditDeliciousWhatsappEmail
Output connectorLC
SFP module – port speed1,25 Gbps
Transmission distance4-20km
CertificationFCC, CE
Depth12.9
Fiber cable diameters supported (core/cladding)9/125
Fiber optic connectorLC (UPC)
Fiber typeSM (Single-Mode)
Height12.9
Input voltage3.3
Interface typeSFP
Maximum data transfer rate1250
Maximum transfer distance10000
Networking standardsIEEE 802.3z
Numbers of pieces in the package1-pack
Operating relative humidity (H-H)10 – 90
Operating temperature (T-T)0 – 70
Package depth81.5
Package height38.5
Package weight60
Package width122.5
Plug and PlayYes
Rx wavelength (max)1310
SFP transceiver typeFiber optic
Single-mode fiber (SMF) supportedYes
Storage relative humidity (H-H)5 – 90
Storage temperature (T-T)-40 – 80
Tx wavelength (max)1550
Wavelength1310/1550 nm
Width55.4
